Arithmetic Workflow

This notebook defines and reloads the arithmetic workflow with pyironflow .

The arithmetic workflow is the smallest example of the Python Workflow Definition (PWD). It does no real science. Instead, it shows the building blocks that every PWD workflow shares. The workflow combines three Python functions, which are defined in the workflow.py module next to this notebook:

Function	Inputs	Returns
get_prod_and_div(x, y)	two numbers	a dictionary {"prod": x * y, "div": x / y}
get_sum(x, y)	two numbers	the sum x + y
get_square(x)	one number	the square x ** 2

Written as a regular Python function, the workflow is:

def arithmetic_workflow(x=1, y=2):
    tmp_dict = get_prod_and_div(x=x, y=y)
    tmp_sum = get_sum(x=tmp_dict["prod"], y=tmp_dict["div"])
    return get_square(x=tmp_sum)

In the PWD, a workflow is stored in three files:

• workflow.py: the Python functions, which become the nodes of the workflow graph.

• workflow.json: the connections between those functions (the edges), plus the input values and the final output.

• environment.yml: the conda environment with the software the functions need. For this website it is shared by all three examples and lives in the root of the repository.

The same workflow is also implemented with other workflow engines, including AiiDA, jobflow and pyiron_base, on the Python Workflow Definition website. This notebook adds a visual programming environment to that list. pyironflow is a graphical user interface based on ReactFlow. It runs inside Jupyter and works on top of the pyiron_workflow workflow engine.

The notebook has two parts:

1. Reload workflow in pyironflow: load the existing workflow.json into pyironflow and run it.

2. Define workflow in pyironflow: build the same workflow with the pyiron_workflow Python interface and export it to workflow.json. This shows how the JSON file in the first part was created.

Reload workflow in pyironflow

The python_workflow_definition package provides an import and export module for each supported workflow engine. load_workflow_json() from python_workflow_definition.pyiron_workflow does the following:

1. Reads workflow.json.

2. Imports the Python functions named in the value fields of the function nodes, for example workflow.get_sum. The module workflow refers to workflow.py in the current directory.

3. Returns a pyiron_workflow Workflow object in which these functions are connected exactly as the edges in the JSON file describe.

The resulting workflow object is then passed to PyironFlow. PyironFlow takes a list of workflows and shows each one in its own tab of the graphical user interface (.gui).

workflow_json_filename = "workflow.json"

from python_workflow_definition.pyiron_workflow import load_workflow_json

from pyironflow import PyironFlow

wf = load_workflow_json(file_name=workflow_json_filename)
PyironFlow([wf]).gui

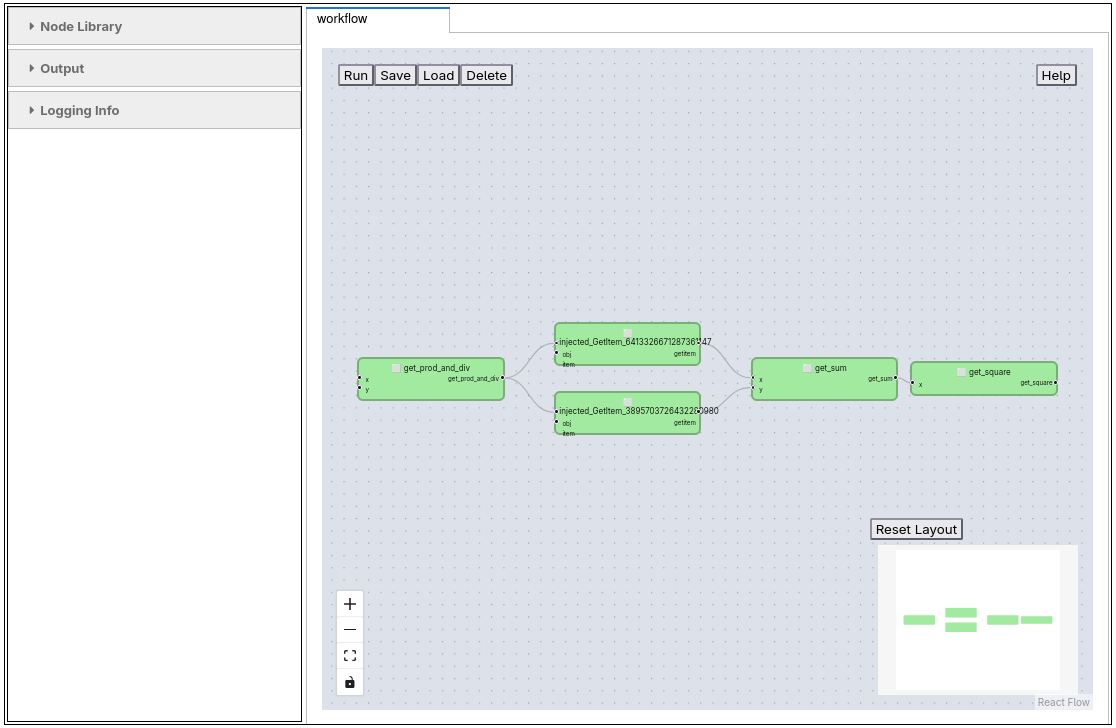

The pyironflow interface is an interactive Jupyter widget, so it only appears when the notebook runs in a live Jupyter session, for example on Binder. For the static website, the screenshot below shows how the arithmetic workflow looks in pyironflow:

The user interface of pyironflow is split into two parts:

• Sidebar (left):

  • Node Library lists Python functions that can be added to the workflow as new nodes.

  • Output shows the result of the most recent execution, including anything the Python functions print to stdout or stderr.

  • Logging Info collects log messages of the workflow engine.

• Canvas (right): each workflow is shown in its own tab. The buttons in the top left are Run (execute the whole workflow), Save and Load (write the workflow, including its results, to storage and read it back) and Delete (remove the saved copy from storage). The controls in the bottom left zoom and fit the view. The Reset Layout button arranges the nodes automatically, and the minimap below it helps you find your way around larger graphs.

Each green box is a node, which is one Python function. Its input ports are on the left and its output ports on the right. Input values that do not come from another node can be edited in the fields next to the input ports. The lines between nodes are the edges of the workflow and show how data flows from one function to the next.

Besides running the whole workflow, you can work with individual nodes:

• Pull runs a node together with all upstream nodes it depends on.

• Push runs a node and all downstream nodes that depend on it.

• Reset clears the cached results of a node.

• The right-click menu offers View Output, which shows a node’s outputs without running it, and View Source, which shows the Python source code behind the node.

These options make it easy to inspect intermediate results while debugging a workflow.

For the arithmetic workflow, the graph reads from left to right:

• get_prod_and_div receives the inputs x and y. The input nodes of workflow.json do not appear as separate boxes. Their values are set directly on the input ports of the function that uses them.

• get_prod_and_div returns one dictionary. pyiron_workflow inserts two small injected_GetItem nodes to extract the "prod" and "div" entries. In workflow.json, the same step is stored more compactly as the sourcePort of an edge.

• get_sum adds the two entries, and get_square squares the sum. The output of get_square is the result of the workflow.

wf.run()

{'get_square__get_square': 6.25}

The workflow can also run directly from Python, without the graphical user interface, by calling wf.run(). For the inputs x=1 and y=2 the steps are:

• get_prod_and_div(x=1, y=2) returns {"prod": 2, "div": 0.5}.

• get_sum(x=2, y=0.5) returns 2.5.

• get_square(x=2.5) returns 6.25.

The keys of the returned dictionary follow the pattern <node label>__<output label>. That is why the final result appears as get_square__get_square.

Define workflow in pyironflow

pyironflow is a graphical front end for the pyiron_workflow workflow engine. A workflow can be built by hand in the GUI, but it can also be defined in Python with the pyiron_workflow interface, as shown here. Running this part of the notebook rebuilds the workflow from workflow.py and overwrites workflow.json with the result.

to_function_node wraps a plain Python function into a pyiron_workflow node that can be added to a Workflow graph. Nodes are assembled into a graph with attribute access: assigning wf.<name> = node(...) both registers the node under that name and connects its inputs to the outputs of other nodes already on the graph.

from python_workflow_definition.pyiron_workflow import write_workflow_json

from pyiron_workflow import Workflow, to_function_node

The functions are imported from workflow.py under names with a leading underscore. This keeps the plain names free for the node classes created in the next step. Because the functions themselves are left unchanged, the exported workflow.json still refers to the original functions, for example workflow.get_sum.

from workflow import (
    get_prod_and_div as _get_prod_and_div,
    get_sum as _get_sum,
    get_square as _get_square,
)

to_function_node() takes three arguments: the name of the new node class, the Python function it wraps, and the label of its output. Each function has a single output, which is labelled with the function name. This label is what appears as get_square__get_square in the result of wf.run() above.

get_prod_and_div = to_function_node("get_prod_and_div", _get_prod_and_div, "get_prod_and_div")
get_sum = to_function_node("get_sum", _get_sum, "get_sum")
get_square = to_function_node("get_square", _get_square, "get_square")

wf = Workflow("my_workflow")

The next cell defines the data flow of the workflow:

• wf.x and wf.y hold the input values.

• wf.prod_and_div calls get_prod_and_div with these inputs.

• wf.prod_and_div["prod"] and wf.prod_and_div["div"] select the two entries of the returned dictionary and pass them to get_sum. This indexing is what creates the injected_GetItem nodes seen in the pyironflow screenshot.

• get_square squares the sum.

None of the functions are executed at this point. The cell only records how the outputs of one function are connected to the inputs of the next.

wf.x = 1
wf.y = 2
wf.prod_and_div = get_prod_and_div(x=wf.x, y=wf.y)
wf.tmp_sum = get_sum(x=wf.prod_and_div["prod"], y=wf.prod_and_div["div"])
wf.square_result = get_square(x=wf.tmp_sum)

wf.draw() renders the resulting node graph, and write_workflow_json serializes wf.graph_as_dict into the PWD workflow.json format.

wf.draw(size=(10,10))

write_workflow_json(graph_as_dict=wf.graph_as_dict, file_name=workflow_json_filename)

!cat workflow.json

{
  "version": "0.1.0",
  "nodes": [
    {
      "id": 0,
      "type": "function",
      "value": "workflow.get_prod_and_div"
    },
    {
      "id": 1,
      "type": "function",
      "value": "workflow.get_sum"
    },
    {
      "id": 2,
      "type": "function",
      "value": "workflow.get_square"
    },
    {
      "id": 3,
      "type": "input",
      "name": "x",
      "value": 1
    },
    {
      "id": 4,
      "type": "input",
      "name": "y",
      "value": 2
    },
    {
      "id": 5,
      "type": "output",
      "name": "result"
    }
  ],
  "edges": [
    {
      "target": 1,
      "targetPort": "y",
      "source": 0,
      "sourcePort": "div"
    },
    {
      "target": 1,
      "targetPort": "x",
      "source": 0,
      "sourcePort": "prod"
    },
    {
      "target": 2,
      "targetPort": "x",
      "source": 1,
      "sourcePort": null
    },
    {
      "target": 0,
      "targetPort": "x",
      "source": 3,
      "sourcePort": null
    },
    {
      "target": 0,
      "targetPort": "y",
      "source": 4,
      "sourcePort": null
    },
    {
      "target": 5,
      "targetPort": null,
      "source": 2,
      "sourcePort": null
    }
  ]
}

The exported workflow.json has two lists:

• nodes describes every node of the graph by its id and type:

  • function nodes refer to a Python function as module.function in their value field, for example workflow.get_prod_and_div.

  • input nodes hold a name and a default value, here x = 1 and y = 2.

  • The output node, named result, marks the final result of the workflow.

• edges connects the nodes. Each edge goes from a source node to a target node. The optional sourcePort picks one entry from the returned dictionary, for example "prod" or "div". A sourcePort of null means the whole return value is passed on. The targetPort names the function argument that receives the value.

This file does not depend on any workflow engine. The injected_GetItem nodes of pyiron_workflow are not stored as nodes. They are translated into the sourcePort of the corresponding edges. As a result, the same workflow.json can be loaded with any workflow engine supported by the Python Workflow Definition, and in the other direction, a workflow defined with another engine can be explored in pyironflow. The other implementations of this example are in the Python Workflow Definition repository.
